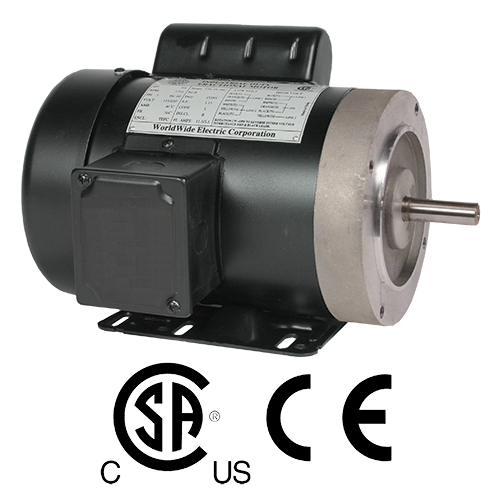

General Purpose Single-Phase
Fractional HP Motors
Select the following tabs to view the product data.
Click the model number for a model-specific downloadable PDF (when available).
-
Features
• 1/3-2 HP
• 3600 and 1800 RPM
• 115/208-230 volt
• TEFC enclosure
• 1.15 service factor
• Class F insulation
• C-face - removable base
• Capacitor start / induction run (1/3-1 HP)
• Capacitor start / capacitor run (1.5-2 HP) for reduced amperage and high torque
• Shaft slinger to keep moisture and contaminants from the drive-end bearing -
Technical Specifications
Model HP RPM Voltage Frame Enclosure FL Amps (A) FL Eff (%) Approx. Wt. (lbs) NT13-18-56CB 1/3 1800 115/208-230 56C TEFC 2.6 63 22 NT12-36-56CB 1/2 3600 115/208-230 56C TEFC 3.3 63 23 NT12-18-56CB 1/2 1800 115/208-230 56C TEFC 3.6 64.5 25 NT34-36-56CB 3/4 3600 115/208-230 56C TEFC 4.6 66.5 27 NT34-18-56CB 3/4 1800 115/208-230 56C TEFC 5 67 29 NT1-36-56CB 1 3600 115/208-230 56C TEFC 5.8 69.5 30 NT1-18-56CB 1 1800 115/208-230 56C TEFC 6.5 70 36 NT1.5-36-56CB 1.5 3600 115/208-230 56C TEFC 6.5 77 31 NT1.5-18-56CB 1.5 1800 115/208-230 56C TEFC 7.3 77 37 NT2-36-56CB 2 3600 115/208-230 56C TEFC 8.5 79.5 37 NT2-18-56CB 2 1800 115/208-230 56C TEFC 9.8 79 44
