Select the following tabs to view the product data.

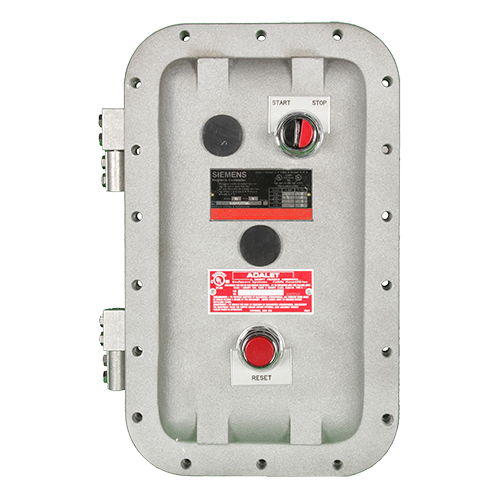

• NEMA 7 & 9 / 3 & 4 enclosure
• Heavy Duty NEMA starters
• Start/stop button
• Bold pilot legend
• Solid state ESP200 overload relay
• Through door overload reset button
• 230/460 Dual voltage, 50/60 hertz dual frequency coils
• True phase loss protection - trips within three seconds
• Phase unbalanced prevents motor from running inefficiently
• Provides improved starter performance
• Ground fault trip when selected
• Selectable trip class - 5, 10, 20 or 30
• Reset trip can be selected auto / manual reset
• Overload is self-powered, no need for external power source
• Easy to select and use, dip switch selectable
• Rugged industrial design
Model | HP @ 200V | HP @ 230V | HP @ 460V | HP @ 575V | NEMA Size | Overload Amp Range | Coil Voltage | Enclosure |
---|---|---|---|---|---|---|---|---|
14CUA32HCA1 | 1/6 | 1/6 | 1/3 | 1/2 | 0 | 0.25-1 | 220-240/440-480 | NEMA 7&9/3&4 |
14CUC32HCA1 | 2 | 2 | 5 | 5 | 0 | 3-12 | 220-240/440-480 | NEMA 7&9/3&4 |
14CUD32HCA1 | 3 | 3 | — | — | 0 | 5.5-22 | 220-240/440-480 | NEMA 7&9/3&4 |
14DUA32HCA1 | 1/6 | 1/6 | 1/3 | 1/2 | 1 | 0.25-1 | 220-240/440-480 | NEMA 7&9/3&4 |
14DUB32HCA1 | 1/2 | 3/4 | 1.5 | 2 | 1 | 0.75-3.4 | 220-240/440-480 | NEMA 7&9/3&4 |
14DUC32HCA1 | 2 | 2 | 5 | 5 | 1 | 3-12 | 220-240/440-480 | NEMA 7&9/3&4 |
14DUD32HCA1 | 3 | 3 | 10 | 10 | 1 | 5.5-22 | 220-240/440-480 | NEMA 7&9/3&4 |
14DUE32HCA1 | 7.5 | 7.5 | — | — | 1 | 10-40 | 220-240/440-480 | NEMA 7&9/3&4 |
14EUE32HCA1 | 10 | 10 | 15 | 15 | 1.75 | 10-40 | 220-240/440-480 | NEMA 7&9/3&4 |
14FUF32HCA1 | 10 | 15 | 25 | 25 | 2 | 13-52 | 220-240/440-480 | NEMA 7&9/3&4 |
14GUG32HCA1 | 15 | 20 | 30 | 30 | 1.5 | 25-100 | 220-240/440-480 | NEMA 7&9/3&4 |
14HUG32HCA1 | 25 | 30 | 50 | 50 | 3 | 25-100 | 220-240/440-480 | NEMA 7&9/3&4 |
14IUH32HCA1 | 30 | 40 | 75 | 75 | 3.5 | 50-200 | 220-240/440-480 | NEMA 7&9/3&4 |
14JUH32HCA1 | 40 | 50 | 100 | 100 | 4 | 50-200 | 220-240/440-480 | NEMA 7&9/3&4 |
