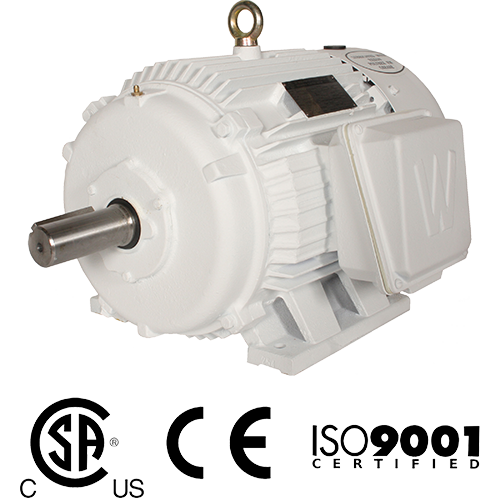

Oil Well Pump Motors

WorldWide LV Motors

Select the following tabs to view data for the various products.

Click the model number for a model-specific downloadable PDF (when available).

  • Features

    • 3-100 HP
    • 1200 RPM
    • 230/460/796 volt
    • TEFC enclosure
    • 1.15 service factor
    • Class F insulation
    • Rigid base
    • High efficiency
    • WWELUC models provided with three winding thermostats (one per phase)
    • WO models provided with three PTC thermistors (one per phase)
    • NEMA Design D - high slip
    • Suitable for 50 hz operation with 1.0 service factor (1-150 HP)

  • Inverter Duty Features

    • 3-150 HP
    • 1200 RPM
    • 230/460/796 volt
    • TEFC enclosure
    • 1.15 service factor
    • Class F insulation
    • Rigid base
    • High efficiency
    • Inverter duty, 10:1 CT / 20:1 VT
    • 3000 volt spike-resistant, inverter duty wire
    • Motors meet NEMA MG-1, Part 31
    • Three winding thermostats provided (one per phase)
    • NEMA Design D - high slip
    • Suitable for 50 hz operation with 1.0 service factor (1-150 HP)

  • Technical Specifications
    Model HP RPM Voltage Frame Enclosure FL Amps (A) FL Eff (%) Approx. Wt. (lbs)
    WWELUC3-12-213T 3 1200 230/460/796 213T TEFC 4.4 81.8 132
    WO3-12-213T 3 1200 230/460/796 213T TEFC 4.4 79 155
    WWELUC5-12-215T 5 1200 230/460/796 215T TEFC 7.3 82.3 154
    WO5-12-215T 5 1200 230/460/796 215T TEFC 7.3 82 175
    WWELUC7.5-12-254T 7.5 1200 230/460/796 254T TEFC 10.8 86.5 297
    WO7.5-12-254T 7.5 1200 230/460/796 254T TEFC 10 86.5 300
    WWELUC10-12-256T 10 1200 230/460/796 256T TEFC 14.5 86.6 322
    WO10-12-256T 10 1200 230/460/796 256T TEFC 14 87 340
    WWELUC15-12-284T 15 1200 230/460/796 284T TEFC 20.7 87.7 416
    WO15-12-284T 15 1200 230/460/796 284T TEFC 19 87 410
    WWELUC20-12-286T 20 1200 230/460/796 286T TEFC 27 87.6 458
    WO20-12-286T 20 1200 230/460/796 286T TEFC 25.5 87.5 440
    WWELUC25-12-324T 25 1200 230/460/796 324T TEFC 32.6 88.4 610
    WO25-12-324T 25 1200 230/460/796 324T TEFC 31.5 88.1 580
    WWELUC30-12-326T 30 1200 230/460/796 326T TEFC 39 87.7 667
    WO30-12-326T 30 1200 230/460/796 326T TEFC 38 88.5 610
    WWELUC40-12-365T 40 1200 230/460/796 365T TEFC 50 88.9 806
    WO40-12-365T 40 1200 230/460/796 365T TEFC 49.5 89 650
    WWELUC50-12-404T 50 1200 230/460/796 404T TEFC 61.5 89.9 995
    WO50-12-404T 50 1200 230/460/796 404T TEFC 60 89 1035
    WWELUC60-12-405T 60 1200 230/460/796 405T TEFC 72.6 89.7 1085
    WO60-12-405T 60 1200 230/460/796 405T TEFC 74 90.3 1200
    WWELUC75-12-444T 75 1200 230/460/796 444T TEFC 92.6 90.6 1428
    WO75-12-444T 75 1200 230/460/796 444T TEFC 88 87.5 1378
    WWELUC100-12-445T 100 1200 230/460/796 445T TEFC 121 91 1747
    WO100-12-445T 100 1200 230/460/796 445T TEFC 120 87.5 1798
  • Inverter Duty Technical Specifications
    Model HP RPM Voltage Frame Enclosure FL Amps (A) FL Eff (%) Approx. Wt. (lbs)
    IROW3-12-213T 3 1200 230/460/796 213T TEFC 4.4 81.8 132
    IROW5-12-215T 5 1200 230/460/796 215T TEFC 7.3 82.3 154
    IROW7.5-12-254T 7.5 1200 230/460/796 254T TEFC 10.8 86.5 297
    IROW10-12-256T 10 1200 230/460/796 256T TEFC 14.5 86.6 322
    IROW15-12-284T 15 1200 230/460/796 284T TEFC 20.7 87.7 416
    IROW20-12-286T 20 1200 230/460/796 286T TEFC 27 87.6 458
    IROW25-12-324T 25 1200 230/460/796 324T TEFC 32.6 88.4 610
    IROW30-12-326T 30 1200 230/460/796 326T TEFC 39 87.7 667
    IROW40-12-365T 40 1200 230/460/796 365T TEFC 50 88.9 806
    IROW50-12-404T 50 1200 230/460/796 404T TEFC 61.5 89.9 995
    IROW60-12-405T 60 1200 230/460/796 405T TEFC 72.6 89.7 1078
    IROW75-12-444T 75 1200 230/460/796 444T TEFC 92.6 90.6 1375
    IROW100-12-445T 100 1200 230/460/796 445T TEFC 121 91 1750
    IROW125-12-447T 125 1200 230/460/796 447T TEFC 151 89 1073
    IROW150-12-449T 150 1200 230/460/796 449T TEFC 180 89 1151
