WorldWide General Purpose C-Face Motors
Available in the following varieties:
• Rigid Base (Standard)
• Factory F2 Mount
Select the following tabs to view data for the various products.
Click the model number for a model-specific downloadable PDF (when available).
-

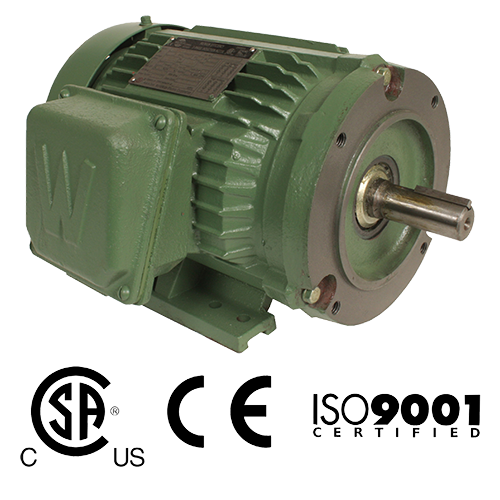

Rigid Base Features
• 1-300 HP
• 3600, 1800 and 1200 RPM
• 208-230/460 volt (1-200 HP)
• 460 volt (250-300 HP)
• TEFC enclosure
• 1.15 service factor
• Class F insulation
• C-face - Rigid base
• Premium efficiency (1-200 HP)
• High efficiency (250-300 HP)
• Inverter ready, 4:1 CT / 10:1 VT (1-200 HP)
• Inverter ready, 2:1 CT / 5:1 VT (250-300 HP)
• Suitable for 50hz operation with 1.0 service factor (1-150 HP)
- Please consult your mdi rep for 200 HP and above -
Rigid Base Technical Specifications
Model HP RPM Voltage Frame Enclosure FL Amps (A) FL Eff (%) Approx. Wt. (lbs) PEWWE1-18-143TC 1 1800 208-230/460 143TC TEFC 1.6 85.5 53 PEWWE1-12-145TC 1 1200 208-230/460 145TC TEFC 1.8 82.5 60 PEWWE1.5-36-143TC 1.5 3600 208-230/460 143TC TEFC 2.1 84 49 PEWWE1.5-18-145TC 1.5 1800 208-230/460 145TC TEFC 2.3 86.5 62 PEWWE2-36-145TC 2 3600 208-230/460 145TC TEFC 2.6 85.5 58 PEWWE2-18-145TC 2 1800 208-230/460 145TC TEFC 3 86.5 67 PEWWE3-36-182TC 3 3600 208-230/460 182TC TEFC 3.7 86.5 98 PEWWE3-18-182TC 3 1800 208-230/460 182TC TEFC 4 89.5 119 PEWWE3-12-213TC 3 1200 208-230/460 213TC TEFC 4.4 89.5 168 PEWWE5-36-184TC 5 3600 208-230/460 184TC TEFC 6 88.5 106 PEWWE5-18-184TC 5 1800 208-230/460 184TC TEFC 6.5 89.5 125 PEWWE5-12-215TC 5 1200 208-230/460 215TC TEFC 7.2 89.5 187 PEWWE7.5-36-213TC 7.5 3600 208-230/460 213TC TEFC 8.6 89.5 168 PEWWE7.5-18-213TC 7.5 1800 208-230/460 213TC TEFC 9.3 91.7 181 PEWWE7.5-12-254TC 7.5 1200 208-230/460 254TC TEFC 10.4 91 265 PEWWE10-36-215TC 10 3600 208-230/460 215TC TEFC 11.6 90.2 185 PEWWE10-18-215TC 10 1800 208-230/460 215TC TEFC 12.4 91.7 205 PEWWE10-12-256TC 10 1200 208-230/460 256TC TEFC 14.2 91 302 PEWWE15-36-254TC 15 3600 208-230/460 254TC TEFC 17.2 91 276 PEWWE15-18-254TC 15 1800 208-230/460 254TC TEFC 18.2 92.4 311 PEWWE15-12-284TC 15 1200 208-230/460 284TC TEFC 18.8 91.7 397 PEWWE20-36-256TC 20 3600 208-230/460 256TC TEFC 23.2 91 306 PEWWE20-18-256TC 20 1800 208-230/460 256TC TEFC 24.1 93 390 PEWWE20-12-286TC 20 1200 208-230/460 286TC TEFC 25 91.7 460 PEWWE25-36-284TSC 25 3600 208-230/460 284TSC TEFC 28.8 91.7 397 PEWWE25-18-284TC 25 1800 208-230/460 284TC TEFC 29.2 93.6 410 PEWWE25-18-284TSC 25 1800 208-230/460 284TSC TEFC 29.2 93.6 410 PEWWE25-12-324TC 25 1200 208-230/460 324TC TEFC 33.7 93 595 PEWWE30-36-286TSC 30 3600 208-230/460 286TSC TEFC 34.2 91.7 430 PEWWE30-18-286TC 30 1800 208-230/460 286TC TEFC 34.7 93.6 450 PEWWE30-12-326TC 30 1200 208-230/460 326TC TEFC 38.6 93 606 PEWWE40-18-324TC 40 1800 208-230/460 324TC TEFC 46.5 94.1 617 PEWWE40-12-364TC 40 1200 208-230/460 364TC TEFC 50.7 94.1 816 PEWWE50-18-326TC 50 1800 208-230/460 326TC TEFC 57.1 94.5 675 PEWWE50-12-365TC 50 1200 208-230/460 365TC TEFC 62.5 94.1 915 PEWWE60-18-364TC 60 1800 208-230/460 364TC TEFC 69.9 95 827 PEWWE60-12-404TC 60 1200 208-230/460 404TC TEFC 70.3 94.5 1069 PEWWE75-36-365TSC 75 3600 208-230/460 365TSC TEFC 83.8 93.6 772 PEWWE75-18-365TC 75 1800 208-230/460 365TC TEFC 84.1 95.4 904 PEWWE75-18-365TSC 75 1800 208-230/460 365TSC TEFC 84.1 95.4 904 PEWWE75-12-405TC 75 1200 208-230/460 405TC TEFC 85.9 94.5 1158 PEWWE100-36-405TSC 100 3600 208-230/460 405TSC TEFC 112 94.1 1103 PEWWE100-18-405TC 100 1800 208-230/460 405TC TEFC 113 95.4 1213 PEWWE100-18-405TSC 100 1800 208-230/460 405TSC TEFC 113 95.4 1213 PEWWE100-12-444TC 100 1200 208-230/460 444TC TEFC 121 95 1455 PEWWE125-36-444TSC 125 3600 208-230/460 444TSC TEFC 132 95 1455 PEWWE125-18-444TC 125 1800 208-230/460 444TC TEFC 137 95.4 1455 PEWWE125-18-444TSC 125 1800 208-230/460 444TSC TEFC 137 95.4 1455 PEWWE125-12-445TC 125 1200 208-230/460 445TC TEFC 145 95 1632 PEWWE150-36-445TSC 150 3600 208-230/460 445TSC TEFC 161 95 1654 PEWWE150-18-445TC 150 1800 208-230/460 445TC TEFC 168 95.8 1632 PEWWE150-18-445TSC 150 1800 208-230/460 445TSC TEFC 168 95.8 1632 PEWWE150-12-445/7TC 150 1200 208-230/460 445/7TC TEFC 176 95.8 2051 PEWWE200-18-445/7TC 200 1800 208-230/460 445/7TC TEFC 228 96.2 2051 PEWWE200-18-445/7TSC 200 1800 208-230/460 445/7TSC TEFC 228 96.2 2051 PEWWE200-12-449TC 200 1200 460 449TC TEFC 234 95.8 2508 WWE250-18-449TC 250 1800 460 449TC TEFC 282 95 2508 WWE250-18-449TSC 250 1800 460 449TSC TEFC 282 95 2508 WWE250-12-449TC 250 1200 460 449TC TEFC 300 95.4 2750 WWE300-18-449TC 300 1800 460 449TC TEFC 334 95.7 2728 -
Factory F2 Mount Features
• 2-200 HP
• 1800 RPM
• 208-230/460 volt
• TEFC enclosure
• 1.15 service factor
• Class F insulation
• C-face - Rigid base
• Premium efficiency
• Inverter ready, 4:1 CT / 10:1 VT
• Suitable for 50hz operation with 1.0 service factor (20-150 HP) -
Factory F2 Mount Technical Specifications
Model HP RPM Voltage Frame Enclosure FL Amps (A) FL Eff (%) Approx. Wt. (lbs) PEWWE20-18-256TC-F2 20 1800 208-230/460 256TC TEFC 24 93 390 PEWWE25-18-284TC-F2 25 1800 208-230/460 284TC TEFC 29 93.6 410 PEWWE30-18-286TC-F2 30 1800 208-230/460 286TC TEFC 35 93.6 450 PEWWE40-18-324TC-F2 40 1800 208-230/460 384TC TEFC 47 94.1 617 PEWWE50-18-326TC-F2 50 1800 208-230/460 386TC TEFC 57 94.5 675 PEWWE60-18-364TC-F2 60 1800 208-230/460 364TC TEFC 70 95 827 PEWWE75-18-365TC-F2 75 1800 208-230/460 365TC TEFC 84 95.4 904 PEWWE100-18-405TC-F2 100 1800 208-230/460 405TC TEFC 113 95.4 1213 PEWWE125-18-444TC-F2 125 1800 208-230/460 444TC TEFC 137 95.4 1455 PEWWE125-18-444TSC-F2 125 1800 208-230/460 444TSC TEFC 137 95.4 1455 PEWWE150-18-445TC-F2 150 1800 208-230/460 445TC TEFC 168 95.8 1632 PEWWE150-18-445TSC-F2 150 1800 208-230/460 445TSC TEFC 168 95.8 1632 PEWWE200-18-445/7TC-F2 200 1800 208-230/460 445/7TC TEFC 228 96.2 2051
