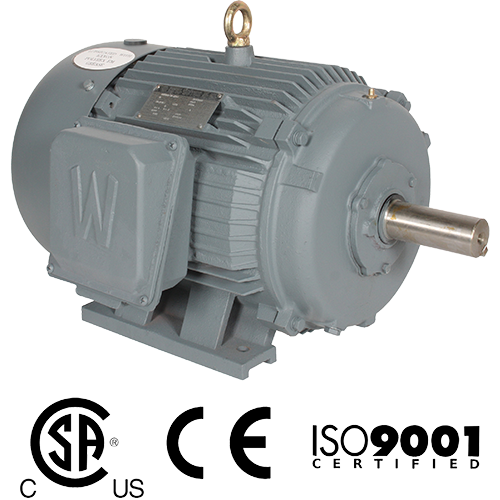

Shaker Screen Motors

WorldWide LV Motors

Select the following tabs to view the product data.

Click the model number for a model-specific downloadable PDF (when available).

  • Features

    • 30-50 HP
    • 1200 RPM
    • 208-230/460 volt
    • TEFC enclosure
    • 1.15 service factor
    • Class F insulation
    • Rigid base
    • High efficiency
    • WWELUC models provided with three winding thermostats (one per phase)
    • SS models provided with three PTC thermistors (one per phase)
    • High intensity - high torque
    • NEMA Design D - high slip for high intertia belted loads
    • Suitable for 50 hz operation with 1.0 service factor

  • Technical Specifications
    Model HP RPM Voltage Frame Enclosure FL Amps (A) FL Eff (%) Approx. Wt. (lbs)
    WWELUC30-12-326T-F1 30 1200 208-230/460 326T TEFC 39 88.7 667
    SS30-12-326T 30 1200 208-230/460 326T TEFC 38 88.5 610
    WWELUC40-12-365T-F1 40 1200 208-230/460 365T TEFC 50 88.9 806
    SS40-12-365T 40 1200 208-230/460 365T TEFC 49.5 89 650
    WWELUC50-12-404T-F1 50 1200 208-230/460 404T TEFC 61.5 89.9 995
    SS50-12-404T 50 1200 208-230/460 404T TEFC 60 89 1035
